Plugin for React Native

Official Jumio Mobile SDK plugin for React Native

This plugin is compatible with version 4.13.0 of the Jumio SDK.
If you have questions, please reach out to your Account Manager or contact Jumio Support.

Compatibility

We only ensure compatibility with a minimum React Native version of 0.79.1

Recent Release

important

• Learn about the latest releases here.
• To know more about the setup, click here.

Setup

Create React Native project and add the Jumio Mobile SDK module to it, learn more.

react-native init MyProject
cd MyProject
npm install --save https://github.com/Jumio/mobile-react.git#v4.13.0
cd ios && pod install

Integration

iOS

1. Add the "NSCameraUsageDescription"-key to your Info.plist file.
2. Your app's deployment target must be at least iOS 13.0

NFC

Check out the NFC setup guide.

Digital Identity

Check out the Digital Identity setup guide.

Device Risk

To include Jumio's Device Risk functionality, you need to add pod Jumio/DeviceRisk to your Podfile.

Android

AndroidManifest
Open your AndroidManifest.xml file and change allowBackup to false.

```xml
<application
...
android:allowBackup="false">
</application>

Make sure your compileSdkVersion and buildToolsVersion are high enough.

```groovy
android {
  compileSdkVersion 33
  buildToolsVersion "33.0.0"
  ...
}

Enable MultiDex
Follow the Android developers guide: https://developer.android.com/studio/build/multidex.html

android {
  ...
  defaultConfig {
    ...
    multiDexEnabled true
  }
}

Upgrade Gradle build tools
The plugin requires at least version 8.0.0 of the Android build tools. This transitively requires and upgrade of the Gradle wrapper to version 8 and an update to Java 11.

Upgrade build tools version to 8.7.3 in android/build.gradle:

buildscript {
  ...
  dependencies {
    ...
    classpath 'com.android.tools.build:gradle:8.7.3'
  }
}

If necessary, modify the Gradle Wrapper version in android/gradle.wrapper/gradle-wrapper.properties:

distributionUrl=https\://services.gradle.org/distributions/gradle-8.9-bin.zip

Repository
Add the Jumio Mobile SDK repository:

exclusiveContent {
  forRepository {
    maven {
      url 'https://repo.mobile.jumio.ai'
    }
  }
  filter {
    includeGroup "com.jumio.android"
    includeGroup "com.iproov.sdk"
  }
}

Proguard

For information on Android Proguard Rules concerning the Jumio SDK, please refer to our Android guides.

Usage

1. Add "NativeModules" to the import of 'react-native'.

import {
  ...
  NativeModules
} from 'react-native';

2. Create a variable of your iOS module:

const {JumioMobileSDK} = NativeModules;

3. The SDKs can be initialized with the following calls.

`JumioMobileSDK.initialize(<AUTHORIZATION_TOKEN>, <DATACENTER>);`;

Datacenter can either be US, EU or SG. For more information about how to obtain an AUTHORIZATION_TOKEN, please refer to our API Guide.

As soon as the SDK is initialized, the SDK is started by the following call.

JumioMobileSDK.start();

Optionally, it is possible to check whether a device is rooted / jailbroken with the following method:

const isRooted = await JumioMobileSDK.isRooted();

Retrieving information

You can listen to events to retrieve the scanned data:

• EventResult for Jumio results.
• EventError for Jumio error.

First add NativeEventEmitter to the import from 'react-native' and listen to the events.

import {
...
NativeEventEmitter
} from 'react-native';

The event receives a JSON object with all the data. The example below shows how to retrieve the information of each emitter as a String:

const emitterJumio = new NativeEventEmitter(JumioMobileSDK);
emitterJumio.addListener('EventResult', EventResult => console.warn('EventResult: ' + JSON.stringify(EventResult)));
emitterJumio.addListener('EventError', EventError => console.warn('EventError: ' + JSON.stringify(EventError)));

Customization

Android

JumioSDK Android appearance can be customized by overriding the custom theme AppThemeCustomJumio. A customization example of all values can be found in the styles.xml of the DemoApp.

iOS

JumioSDK iOS appearance can be customized to your respective needs. You can customize each color based on the device's set appearance, for either Dark mode or Light mode, or you can set a single color for both appearances. Customization is optional and not required.

You can pass the following customization options to the setupCustomizations() function:

Customization key
facePrimary
faceSecondary
faceOutline
faceAnimationForeground
iProovFilterForegroundColor
iProovFilterBackgroundColor
iProovTitleTextColor
iProovCloseButtonTintColor
iProovSurroundColor
iProovPromptTextColor
iProovPromptBackgroundColor
genuinePresenceAssuranceReadyOvalStrokeColor
genuinePresenceAssuranceNotReadyOvalStrokeColor
livenessAssuranceOvalStrokeColor
livenessAssuranceCompletedOvalStrokeColor
primaryButtonBackground
primaryButtonBackgroundPressed
primaryButtonBackgroundDisabled
primaryButtonForeground
primaryButtonForegroundPressed
primaryButtonForegroundDisabled
primaryButtonOutline
secondaryButtonBackground
secondaryButtonBackgroundPressed
secondaryButtonBackgroundDisabled
secondaryButtonForeground
secondaryButtonForegroundPressed
secondaryButtonForegroundDisabled
secondaryButtonOutline
bubbleBackground
bubbleForeground
bubbleBackgroundSelected
bubbleOutline
loadingCirclePlain
loadingCircleGradientStart
loadingCircleGradientEnd
loadingErrorCircleGradientStart
loadingErrorCircleGradientEnd
loadingCircleIcon
scanOverlay
scanOverlayBackground
nfcPassportCover
nfcPassportPageDark
nfcPassportPageLight
nfcPassportForeground
nfcPhoneCover
scanViewTooltipForeground
scanViewTooltipBackground
scanViewForeground
scanViewDocumentShutter
scanViewFaceShutter
searchBubbleBackground
searchBubbleForeground
searchBubbleOutline
confirmationImageBackground
confirmationImageBackgroundBorder
confirmationIndicatorActive
confirmationIndicatorDefault
confirmationImageBorder
background
navigationIconColor
textForegroundColor
primaryColor
selectionIconForeground

All colors are provided with a HEX string in the following formats: #ff00ff or #66ff00ff if you want to set the alpha level.

Customization example

Example for setting color based on Dark or Light mode:

JumioMobileSDK.setupCustomizations({
    primaryColor: { light:"ffffff", dark:"000000" }
    primaryButtonBackground: { light:ffffff, dark:"000000" }
});

Example for setting same color for both Dark and Light mode:

JumioMobileSDK.setupCustomizations({
    primaryColor: "ffffff"
    primaryButtonBackground: "ffffff"
});

Configuration

For more information about how to set specific SDK parameters (callbackUrl, userReference, country, ...), please refer to our API Guide.

Callbacks

In oder to get information about result fields, Retrieval API, Delete API, global settings and more, please read our page with server related information.

Result Objects

The JSON object with all the extracted data that is returned for the specific products is described in the following subchapters:

EventResult

Parameter	Type	Max. length	Description
selectedCountry	String	3	ISO 3166-1 alpha-3 country code as provided or selected
selectedDocumentType	String	16	PASSPORT, DRIVER_LICENSE, IDENTITY_CARD or VISA
selectedDocumentSubType	String		Sub type of the scanned ID
idNumber	String	100	Identification number of the document
personalNumber	String		Personal number of the document
issuingDate	Date		Date of issue
expiryDate	Date		Date of expiry
issuingCountry	String	3	Country of issue as (ISO 3166-1 alpha-3) country code
lastName	String	100	Last name of the customer
firstName	String	100	First name of the customer
dob	Date		Date of birth
gender	String	1	m, f or x
originatingCountry	String	3	Country of origin as (ISO 3166-1 alpha-3) country code
addressLine	String	64	Street name
city	String	64	City
subdivision	String	3	Last three characters of ISO 3166-2:US state code
postCode	String	15	Postal code
mrzData	MRZ-DATA		MRZ data, see table below
optionalData1	String	50	Optional field of MRZ line 1
optionalData2	String	50	Optional field of MRZ line 2
placeOfBirth	String	255	Place of Birth

MRZ-Data

Parameter	Type	Max. length	Description
format	String	8	MRP, TD1, TD2, CNIS, MRVA, MRVB or UNKNOWN
line1	String	50	MRZ line 1
line2	String	50	MRZ line 2
line3	String	50	MRZ line 3
idNumberValid	BOOL		True if ID number check digit is valid, otherwise false
dobValid	BOOL		True if date of birth check digit is valid, otherwise false
expiryDateValid	BOOL		True if date of expiry check digit is valid or not available, otherwise false
personalNumberValid	BOOL		True if personal number check digit is valid or not available, otherwise false
compositeValid	BOOL		True if composite check digit is valid, otherwise false

Local Models for ID Verification and Liveness

Our SDK requires several machine learning models to work best. We recommend to download the files and add them to your project without changing their names (the same way you add Localization files). This will save two network requests on runtime to download these files.

Preloading models

You can preload the ML models before initializing the Jumio SDK. To do so set the completion block with JumioMobileSDK.setPreloaderFinishedBlock and start the preloading with JumioMobileSDK.preloadIfNeeded.

iOS

You can find the models in the Bundling models in the app section of our integration guide.

You also need to copy those files to the "ios/Assets" folder for React to recognize them.

Android

You can find the models in the Bundling models in the app section of our integration guide.

You need to copy those files to the assets folder of your Android project (Path: "app/src/main/assets/").

FAQ

Face help animation breaks on Android

If face help animation looks as expected in debug builds, but breaks in release builds, please make sure to include the following rule in your Proguard file:

`-keep class androidx.constraintlayout.motion.widget.** { *; }`

iOS Simulator shows a white-screen, when the Jumio SDK is started

The Jumio SDK does not support the iOS Simulator. Please run the Jumio SDK only on physical devices.

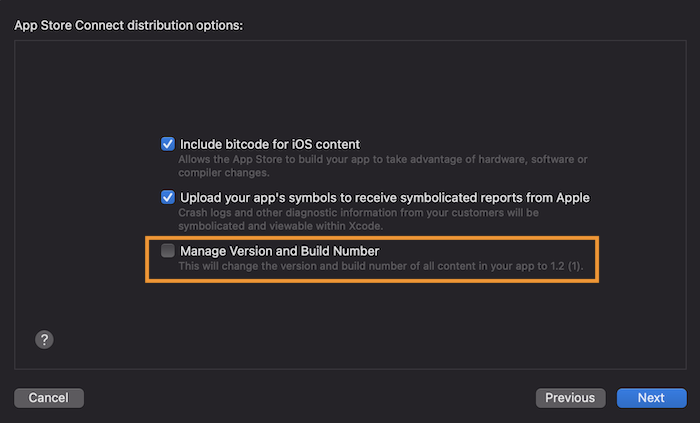

iOS Runs on Debug, Crashes on Release Build

This happens due to Xcode 13 introducing a new option to their App Store Distribution Options:

"Manage Version and Build Number" (see image below)

If checked, this option changes the version and build number of all content of your app to the overall application version, including third-party frameworks. This option is enabled by default. Please make sure to disable this option when archiving / exporting your application to the App Store. Otherwise, the Jumio SDK version check, which ensures all bundled frameworks are up to date, will fail.

Alternatively, it is also possible to set the key manageAppVersionAndBuildNumber in the exportOptions.plist to false:

`<key>manageAppVersionAndBuildNumber</key>`
`<false/>`

Using iOS Dynamic Frameworks with React Native Sample App

Jumio SDK version 3.8.0 and newer use iProov dependencies that need need to be built as dynamic frameworks. Since React Native supports only static libraries, a pre-install hook has been added to ensure that pods added as dynamic_frameworks are actually built as dynamic frameworks, while all other pods are built as static libraries.

pre_install do |installer|
  installer.pod_targets.each do |pod|
    puts "Overriding the static_framework? method for #{pod.name}"
    def pod.static_framework?;
      true
    end
    def pod.build_type;
      Pod::BuildType.static_library
    end
  end
end

Additionally, a post install hook needs to be added to the Podfile to ensure dependencies are build for distribution:

post_install do |installer|
    installer.pods_project.targets.each do |target|
      if ['iProov', 'DatadogRUM', 'DatadogCore', 'DatadogInternal'].include? target.name
        target.build_configurations.each do |config|
          config.build_settings['BUILD_LIBRARY_FOR_DISTRIBUTION'] = 'YES'
        end
      end
    end
end

iOS Crashes on Start with Xcode 15

If you are working with Xcode 15 and above, please make sure the following lines have been added to your Podfile:

post_install do |installer|
    installer.pods_project.targets.each do |target|
      if ['iProov', 'DatadogRUM', 'DatadogCore', 'DatadogInternal'].include? target.name
        target.build_configurations.each do |config|
          config.build_settings['IPHONEOS_DEPLOYMENT_TARGET'] = '12.0'
        end
      end
    end
end

Please refer to the iOS section of our DemoApp guide for additional details.

iOS Build Fails for React 0.71.2

use_frameworks! needs to be included in the Podfile and properly executed in order for Jumio dynamic frameworks to install correctly. Make sure the necessary pre_install and post_install hooks have been included. Also make sure that Flipper is disabled for your project, since Flipper is not compatible with iOS dynamic frameworks at the moment.

Please also refer to the Podfile of our sample application for further details.

iOS Localization

After installing Cocoapods, please localize your iOS application using the languages provided at the following path:
ios -> Pods -> Jumio -> Localization -> xx.lproj

Make sure your Podfile is up to date and that new pod versions are installed properly so your Localizable files include new strings. For more information, please refer to our Changelog and Transition Guide.

Support

Contact

If you have any questions regarding our implementation guide please contact Jumio Customer Service at support@jumio.com or https://support.jumio.com. The Jumio online helpdesk contains a wealth of information regarding our service including demo videos, product descriptions, FAQs and other things that may help to get you started with Jumio. Check it out at: https://support.jumio.com.
