v3 Workflow Descriptions

Workflows are specified using the key attribute in the workflowDefinition object:

"workflowDefinition": {
    "key": DEFINITION_KEY,
    "credentials": []
}

Workflow 1: ID Capture and Storage

This workflow captures a government-issued ID document and stores the extracted data.

Required Credentials - ID Stored credentials - ID

Prerequisites

Allowed channels: API, SDK, WEB

Capabilities

In order of dependency:

usability --> extraction

Example

Initiate Account Creation

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 1,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE"
    }'

Response:

{
    "timestamp": "2021-09-21T12:39:12.131Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationTokenxxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 2,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE"
    }'

Response:

{
    "timestamp": "2021-09-21T12:39:12.131Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationTokenxxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

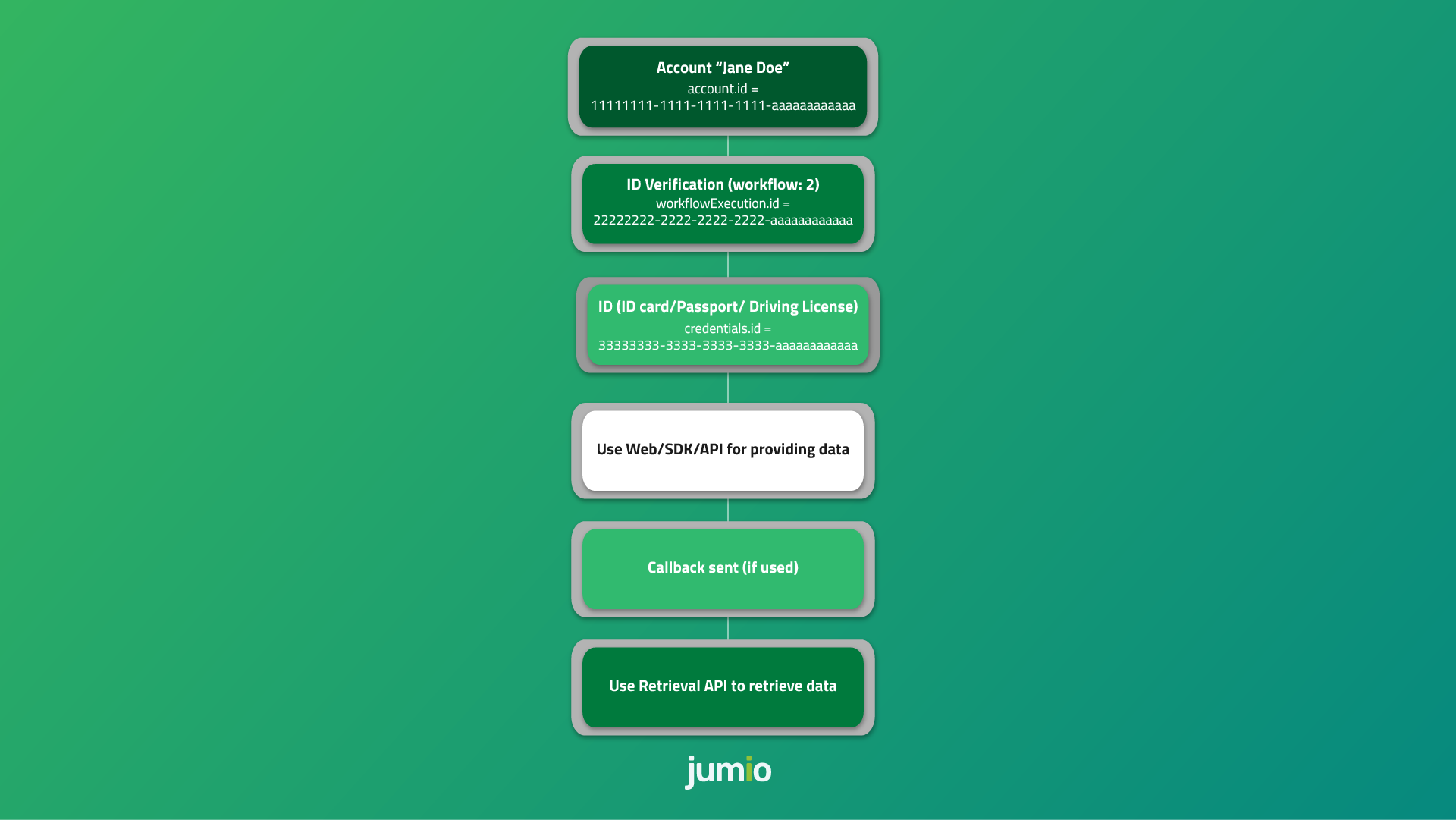

Workflow 2: ID Verification

This workflow verifies a government-issued ID document and returns a. whether that document is valid, and b. data extracted from that document.

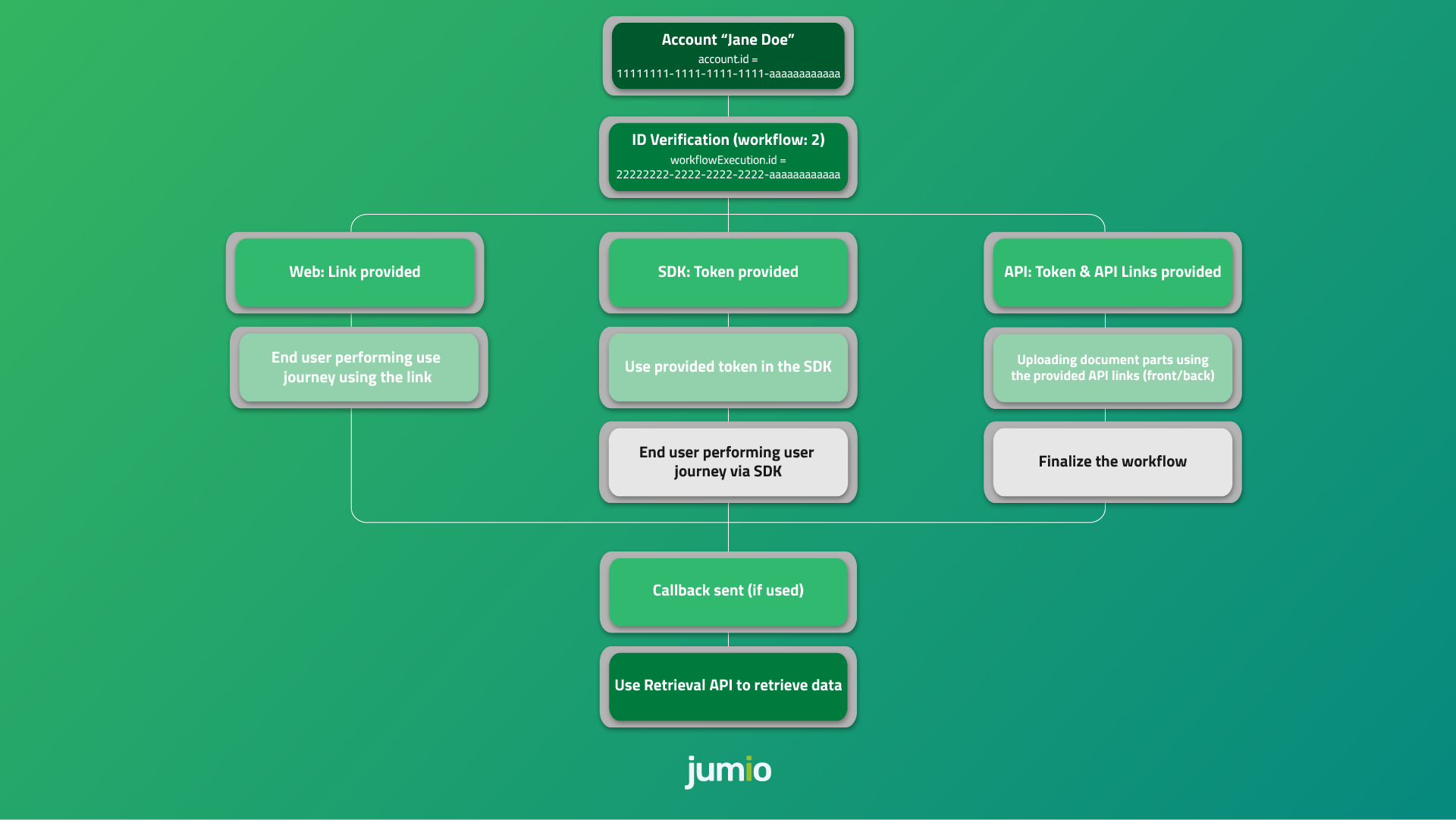

Workflow 2: Details

Required Credentials

ID

Stored Credentials

ID

Prerequisites

Allowed channels: API, SDK, WEB

Capabilities

In order of dependency:

usability --> imageChecks --> extraction --> dataChecks

Example

Initiate Account Creation

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 2,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    },
                    "country": {
                        "values": ["USA", "CAN", "AUT", "GBR"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE"
    }'

Response:

{
    "timestamp": "2021-05-28T09:17:50.240Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationTokenxxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 2,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    },
                    "country": {
                        "values": ["USA", "CAN", "AUT", "GBR"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE"
    }'

Response:

{
    "timestamp": "2021-02-16T16:03:10.466Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=de"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.apac-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.apac-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.apac-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Please also refer to Account Update section.

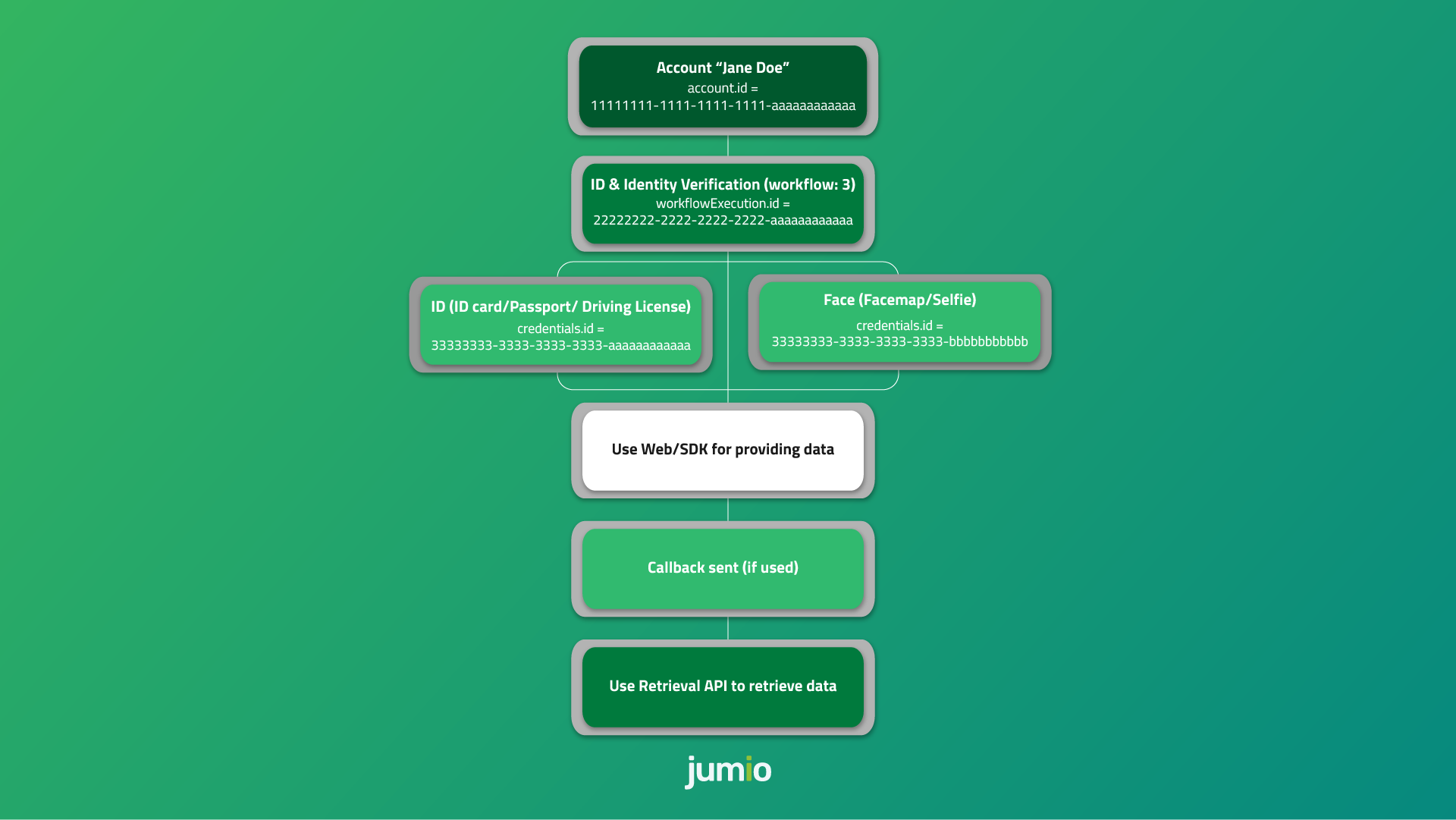

Workflow 3: ID and Identity Verification

This workflow verifies a photo ID document and returns a. whether that document is valid, and b. data extracted from that document. It also compares the user's face with the photo on the ID and performs a liveness check to ensure the person is physically present.

Required Credentials

ID Selfie Facemap

Stored Credentials

ID Selfie Facemap

Prerequisites

Identity Verification must be enabled for your account. (Contact your Jumio account manager for activation.) Allowed channels: SDK, WEB, API Obtain End-User Consent for Biometric Data

Capabilities

In order of dependency:

usability --> imageChecks --> extraction --> dataChecks usability --> liveness usability --> similarity

Example

Initiate Account Creation

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 3,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    },
                    "country": {
                        "values": ["USA", "CAN", "AUT", "GBR"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE",
        "userConsent": {
            "userIp": "192.168.0.1",
            "userLocation": {
                "country": "USA",
                "state": "IL"
            },
             "consent": {
              "obtained": "yes",
              "obtainedAt": "2022-07-20T17:20:35.000Z"

            }
        }
    }'

Response:

{
    "timestamp": "2021-05-19T14:55:08.187Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "SDK",
                    "API"
                ]
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            },
            {
                "id": "33333333-3333-3333-cccccccccccc",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "SDK",
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 3,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    },
                    "country": {
                        "values": ["USA", "CAN", "AUT", "GBR"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE"
    }'

Response:

{
    "timestamp": "2021-05-19T14:55:08.187Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "SDK",
                    "API"
                ]
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            },
            {
                "id": "33333333-3333-3333-cccccccccccc",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "SDK",
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

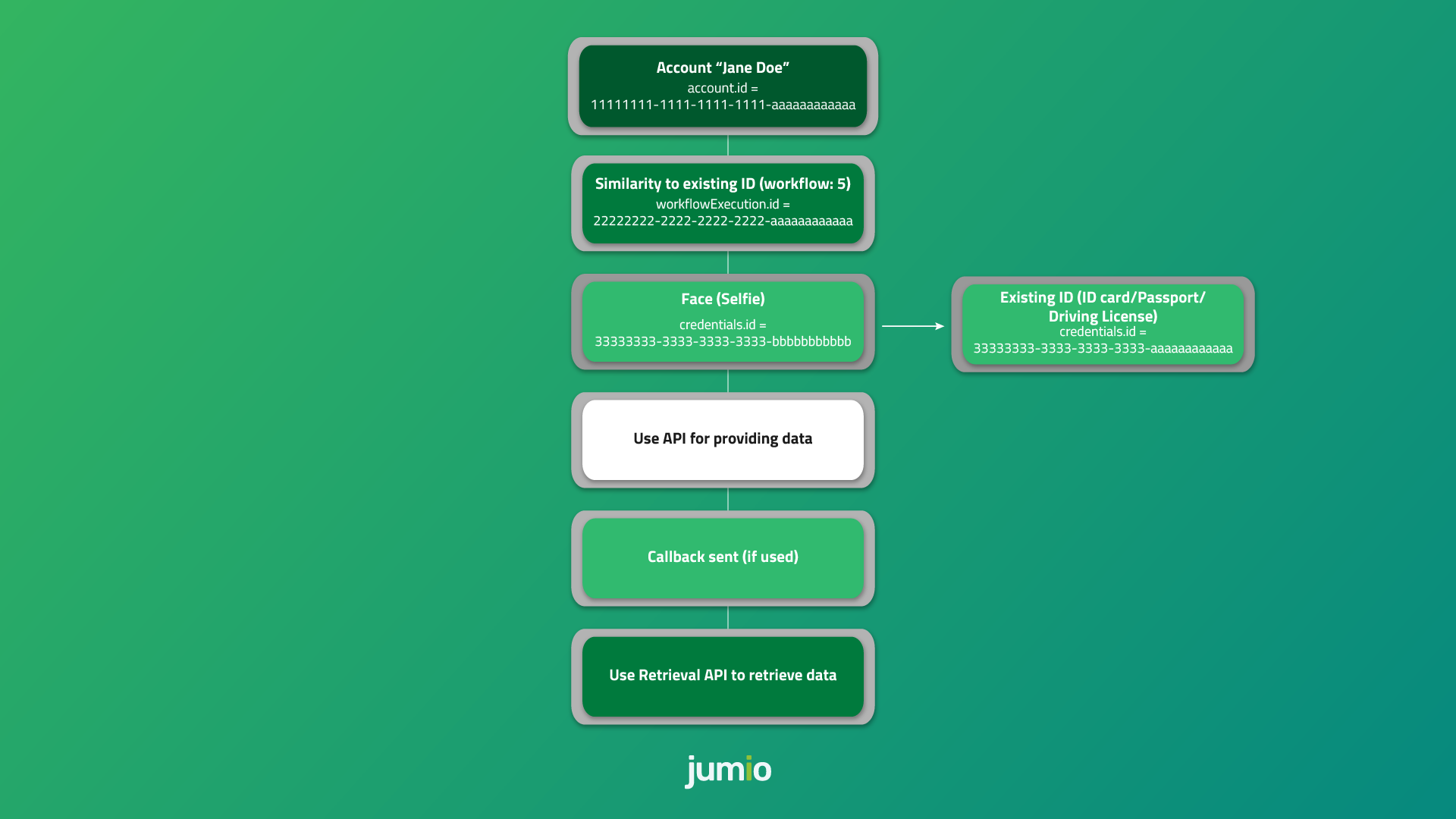

Workflow 5: Similarity to Existing ID

This workflow matches a selfie of a user to the face of a document holder of a stored ID document that has already been verified.

Required Credentials

ID (already on file) Selfie

Stored Credentials

ID Selfie

Prerequisites

ID already on file (workflowExecution.credentials.id) Identity Verification must be enabled for your account. (Contact your Jumio account manager for activation.) Account already exists, <accountId> available Allowed channels: API Obtain End-User Consent for Biometric Data

Capabilities

In order of dependency:

usability --> similarity

Example

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "123",
    "workflowDefinition": {
        "key": 5,
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID"
            },
            {
                "category": "SELFIE"
            }
        ]
    },
    "userConsent": {
        "userIp": "192.168.0.1",
        "userLocation": {
            "country": "USA",
            "state": "IL"
        },
         "consent": {
          "obtained": "yes",
          "obtainedAt": "2022-07-20T17:20:35.000Z"

        }
    }
}'

Response:

{
    "timestamp":"2021-05-14T13:58:13.285Z",
    "account":{
        "id":"11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution":{
        "id":"22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials":[
            {
                "id":"33333333-3333-3333-aaaaaaaaaaaa",
                "category":"ID",
                "allowedChannels":[]
            },
            {
            "id":"33333333-3333-3333-bbbbbbbbbbbb",
            "category":"SELFIE",
            "allowedChannels":["API"],
            "api":
                {
                    "token":"xxx",
                    "parts":
                        {
                            "face":"https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                        },
                    "workflowExecution":"https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Upload Face

HTTP Request Method: POST

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACE EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACE SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACE

Request Path Parameters:

Parameter	Type	Description
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow
credentialsId	string	UUID of the credentials

Request Body:

Key	Value
file	Supported formats: JPEG, PNG Maximum file size: 10 MB Maximum resolution: 8000 x 8000

Request:

curl --location --request POST 'https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE' \
--header 'User-Agent: User Demo' \
--header 'Content-Type: multipart/form-data' \
--header 'Authorization: Bearer xxx' \
--form 'file=@"/J:/User/2020-03-01/faces/selfie.jpg"'

Response:

{
    "timestamp": "2021-05-14T14:09:57.266Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa"
    },
    "api": {
        "token": "xxx",
        "parts": {
            "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
        },
        "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
    }
}

Finalize

HTTP Request Method: PUT

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>

Request:

curl --location --request PUT 'https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa' \
--header 'User-Agent: User Demo' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer xxx'

Response:

{
    "timestamp": "2021-05-14T14:12:30.562Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa"
    }
}

Retrieval

Please refer to Available Retrieval APIs.

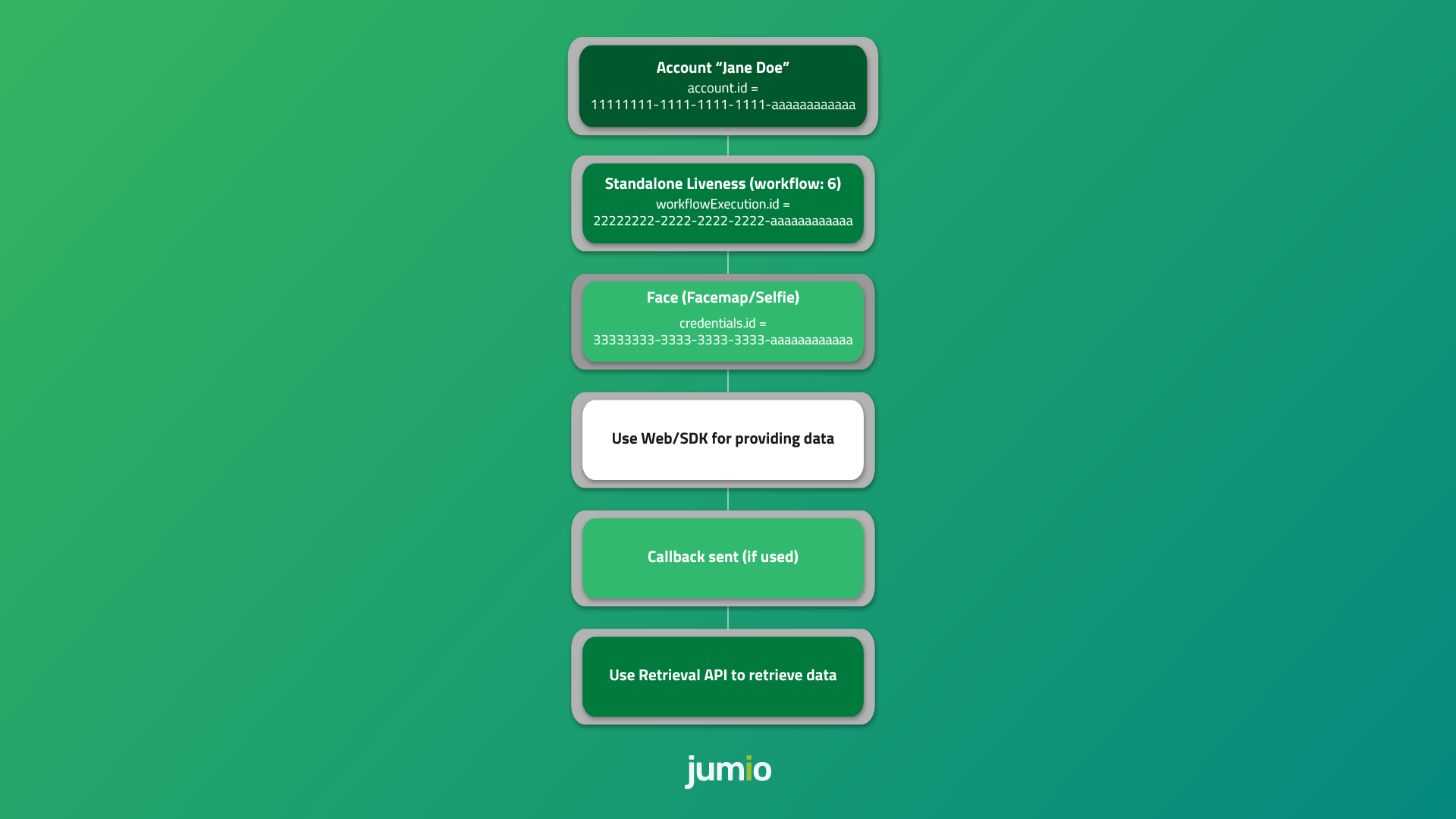

Workflow 6: Standalone Liveness

This workflow captures a user's face to verify that the person is physically present and not presenting a photo or other fake as their selfie.

Required Credentials

Selfie Facemap

Stored Credentials

Selfie Facemap

Prerequisites

Identity Verification must be enabled for your account. (Contact your Jumio account manager for activation.) Allowed channels: SDK, API Obtain End-User Consent for Biometric Data

Capabilities

In order of dependency:

usability --> liveness

Example

Initiate Account Creation

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts

Request:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 6,
        "credentials": []
    },
    "userConsent": {
        "userIp": "192.168.0.1",
        "userLocation": {
            "country": "USA",
            "state": "IL"
        },
         "consent": {
          "obtained": "yes",
          "obtainedAt": "2022-07-20T17:20:35.000Z"

        }
    }
}'

Response:

{
    "timestamp": "2021-05-19T15:11:18.072Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "SDK",
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 6,
        "credentials": []
    }
}'

Response:

{
    "timestamp": "2021-05-19T15:11:18.072Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "SDK",
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Workflow 9: Authentication

This workflow compares the facemap of a user to an already existing facemap that has already been captured.

The existing facemap must have been acquired during a previous workflow, e.g. Workflow 3 or Workflow 6.

Required Credentials

Selfie Facemap

Stored Credentials

Selfie Facemap

Prerequisites

• Identity Verification must be enabled for your account. (Contact your Jumio account manager for activation.)
• Account already exists, <accountId> available
• Facemap already on file, acquired through previous workflow
• Allowed channels: SDK, WEB
• Obtain End-User Consent for Biometric Data ⚠️ If the continuous consent applies, the consent is valid for a period of maximum 3 years (between the consent timestamp and current timestamp). A new consent needs to be obtained from the end-user before continuous consent expires. The consent timestamp (consent.obtainedAt) has to be updated accordingly.

Capabilities

(In order of dependency)

usability --> authentication

Example

Initiate Account Update HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId> Request:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 9
    },
    "userConsent": {
        "userIp": "192.168.0.1",
        "userLocation": {
            "country": "USA",
            "state": "IL"
        },
         "consent": {
          "obtained": "yes",
          "obtainedAt": "2022-07-20T17:20:35.000Z"

        }
    }
}'

Response:

{
    "timestamp": "2021-05-19T15:28:15.711Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            },
            {
                "id": "33333333-3333-3333-cccccccccccc",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            }
        ]
    }
}

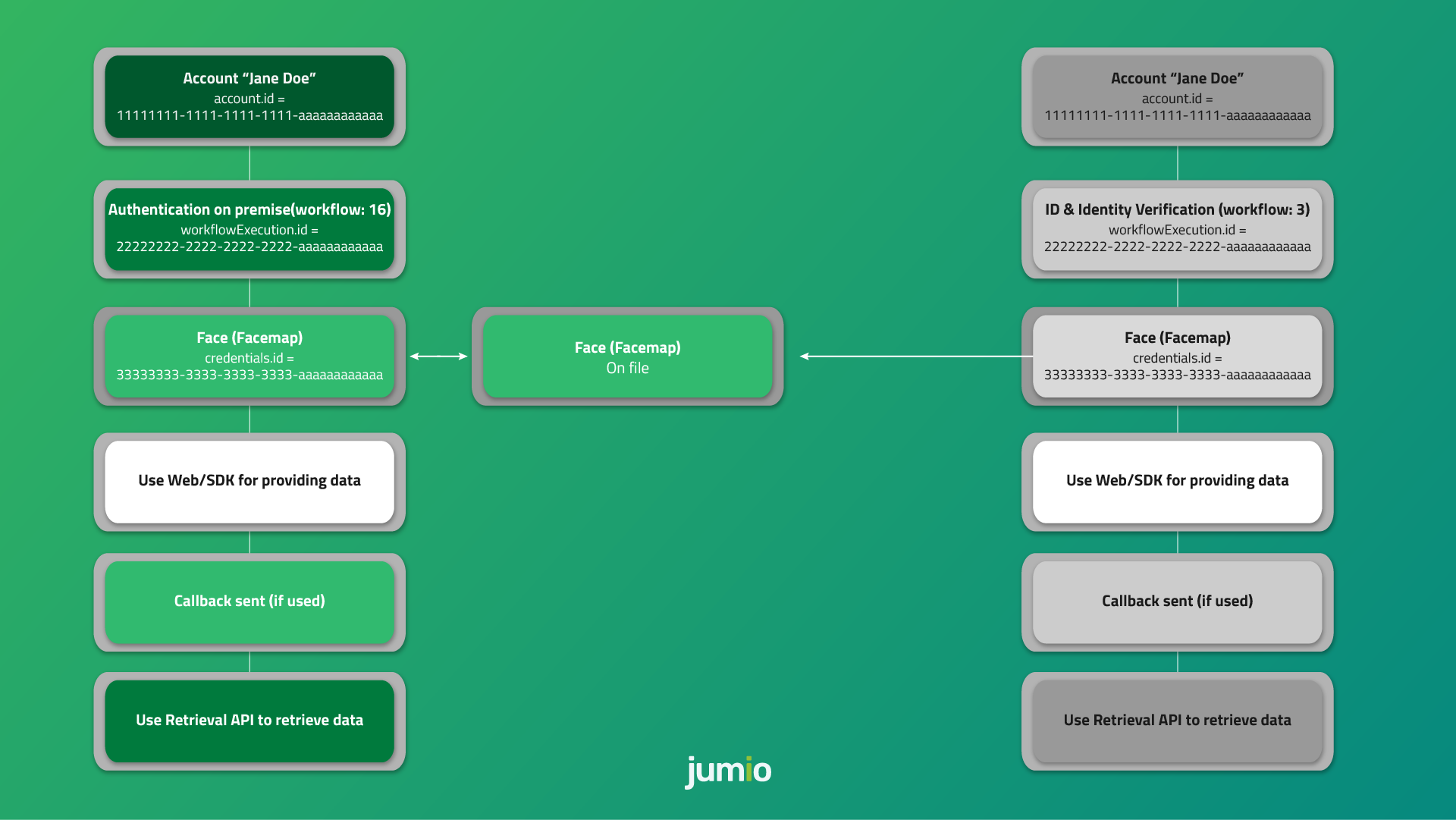

Workflow 16: Authentication on Premise

This workflow compares the facemap of a user to an existing facemap that was previously captured and is stored on the customer side.

The existing facemap must have been acquired during a previous workflow, e.g. Workflow 3 or Workflow 6, and can be retrieved with the Retrieval API using the validFaceMapForAuthentication parameter.

Required Credentials

Selfie Facemap

Stored Credentials

Selfie Facemap

Prerequisites

Identity Verification must be enabled for your account. (Contact your Jumio account manager for activation.) Facemap on premise must be enabled for your account. Account already exists, <accountId> available Facemap already on file (customer-side), acquired through previous workflow. Allowed channels: SDK, WEB Obtain End-User Consent for Biometric Data ⚠️ If the continuous consent applies, the consent is valid for a period of maximum 3 years (between the consent timestamp and current timestamp). A new consent needs to be obtained from the end-user before continuous consent expires. The consent timestamp (consent.obtainedAt) has to be updated accordingly.

Capabilities

In order of dependency:

usability --> authentication

Example

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 16
    },
    "userConsent": {
        "userIp": "192.168.0.1",
        "userLocation": {
            "country": "USA",
            "state": "IL"
        },
         "consent": {
          "obtained": "yes",
          "obtainedAt": "2022-07-20T17:20:35.000Z"

        }
    }
}'

Response:

{
    "timestamp": "2021-05-19T15:34:30.408Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=es"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "FACEMAP",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "facemap": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FACEMAP"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            },
            {
                "id": "33333333-3333-3333-cccccccccccc",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            }
        ]
    }
}

Upload Facemap

HTTP Request Method: POST

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACEMAP EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACEMAP SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACEMAP

Request Path Parameters:

Parameter	Type	Description
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow
credentialsId	string	UUID of the credentials

Request Body:

Key	Value
file	Supported format: BIN

Request:

curl --location --request POST 'https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FACEMAP' \
--header 'User-Agent: User Demo' \
--header 'Content-Type: multipart/form-data' \
--header 'Authorization: Bearer xxx' \
--form 'file=@"/J:/User/2020-03-01/faces/facemap.bin"'

Response:

{
    "timestamp": "2021-05-20T14:25:21.355Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa"
    },
    "api": {
        "token": "xxx",
        "parts": {
            "facemap": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FACEMAP"
        },
        "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
    }
}

ℹ️ After successful facemap upload, a new user journey can be performed for the purposes of comparing the uploaded facemap with the face of the current user, using the channels SDK or WEB. For details refer to Initiate Account Update

Retrieval

Please refer to Available Retrieval APIs.

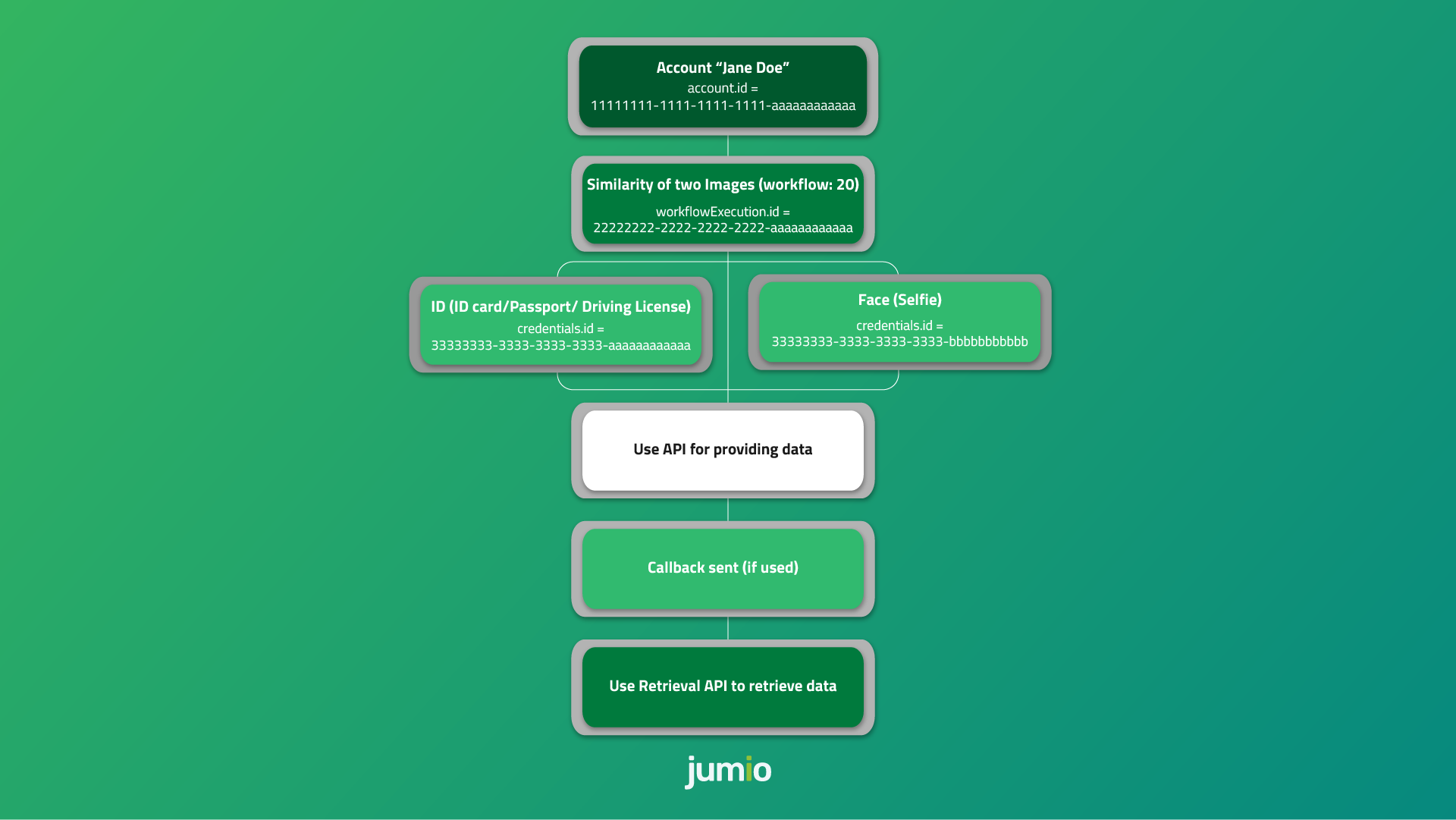

Workflow 20: Similarity of Two Images

This workflow either matches the user photos on two IDs, two user selfies or a user's selfie with the photo on the ID to verify they are the same person.

Required Credentials

Selfie ID

Stored Credentials

Selfie ID

Prerequisites

Allowed channels: API Obtain End-User Consent for Biometric Data

Capabilities

In order of dependency:

usability --> similarity

Example

Initiate Account Creation

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts

Request ID / Selfie:

curl --location --request POST 'https://account.amer-1.jumio.ai/api/v1/accounts' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 20
    },
    "userConsent": {
        "userIp": "192.168.0.1",
        "userLocation": {
            "country": "USA",
            "state": "IL"
        },
         "consent": {
          "obtained": "yes",
          "obtainedAt": "2022-07-20T17:20:35.000Z"

        }
    }
}'

Request ID / ID:

curl --location --request POST 'https://account.amer-1.jumio.ai/api/v1/accounts' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 20,
        "credentials": [
            {"category":"ID"},
            {"category":"ID"}
        ]
    }
}'

Request Selfie / Selfie:

curl --location --request POST 'https://account.amer-1.jumio.ai/api/v1/accounts' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 20,
        "credentials": [
            {"category":"SELFIE"},
            {"category":"SELFIE"}
        ]
    }
}'

Response ID / Selfie:

{
    "timestamp": "2021-05-21T14:52:37.815Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Response ID / ID:

{
    "timestamp": "2021-09-03T10:17:24.806Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "ID",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Response Selfie / Selfie:

{
    "timestamp": "2021-09-03T10:17:24.806Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "SELFIE",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Initiate Account Update

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId> EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId> SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request ID / Selfie:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/<accountId>' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 20
    }
}'

Request ID / ID:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/<accountId>' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 20,
        "credentials": [
            {"category":"ID"},
            {"category":"ID"}
        ]
    }
}'

Request Selfie / Selfie:

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/<accountId>' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer xxx' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_REFERENCE",
    "workflowDefinition": {
        "key": 20,
        "credentials": [
            {"category":"SELFIE"},
            {"category":"SELFIE"}
        ]
    }
}'

Response ID / Selfie:

{
    "timestamp": "2021-05-21T14:52:37.815Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Response ID / ID:

{
    "timestamp": "2021-09-03T10:17:24.806Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "ID",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Response Selfie / Selfie:

{
    "timestamp": "2021-09-03T10:17:24.806Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "SELFIE",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "API"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

Upload Document

HTTP Request Method: POST

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/<classifier> EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/<classifier> SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/<classifier>

Request Path Parameters:

Parameter	Type	Description
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow
credentialsId	string	UUID of the credentials
classifier	string	Possible values: FRONT BACK

Request Body:

Key	Value
file	Supported formats: JPEG, PNG Maximum file size: 10 MB Maximum resolution: 8000 × 8000

Request:

curl --location --request POST 'https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT' \
--header 'User-Agent: User Demo' \
--header 'Content-Type: multipart/form-data' \
--header 'Authorization: Bearer xxx' \
--form 'file=@"/J:/User/2020-03-01/faces/front.jpg"'

Response:

{
    "timestamp": "2021-05-24T08:07:29.511Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa"
    },
    "api": {
        "token": "xxx",
        "parts": {
            "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
            "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
        },
        "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
    }
}

Upload Face

HTTP Request Method: POST

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACE EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACE SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/FACE

Request Path Parameters:

Parameter	Type	Description
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow
credentialsId	string	UUID of the credentials

Request Body:

Key	Value
file	Supported formats: JPEG, PNG Maximum file size: 10 MB Maximum resolution: 8000 × 8000

Request

curl --location --request POST 'https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE' \
--header 'User-Agent: User Demo' \
--header 'Content-Type: multipart/form-data' \
--header 'Authorization: xxx' \
--form 'file=@"/J:/User/2020-03-01/faces/face.jpg"

Response

{
    "timestamp": "2021-05-24T08:15:55.269Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa"
    },
    "api": {
        "token": "xxx",
        "parts": {
            "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
        },
        "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
    }
}

Finalize

HTTP Request Method: PUT

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>

Request:

curl --location --request PUT 'https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa' \
--header 'User-Agent: User Demo' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer xxx'

Response:

{
    "timestamp": "2021-05-24T08:20:31.344Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa"
    }
}

Workflow 32: ID Verification, Identity Verification, Screening

This workflow verifies a photo ID document and returns a. whether that document is valid, and b. data extracted from that document. It also compares the user's face with the photo on the ID and performs a liveness check to ensure the person is physically present. Checks if user is part of any sanctions list using Comply Advantage.

Required Credentials

ID Selfie Facemap

Stored Credentials

ID Selfie Facemap

Prerequisites

Identity Verification must be enabled for your account. (Contact your Jumio account manager for activation.) Screening must be enabled for your account. (Contact your Jumio account manager for activation.) Screening must be set up for your Customer Portal (see Comply Advantantage Portal Setup) Allowed channels: API, SDK, WEB Obtain End-User Consent for Biometric Data

Capabilities

In order of dependency:

usability --> imageChecks --> extraction --> dataChecks usability --> liveness usability --> imageChecks --> extraction --> watchlistScreening

Example

Initiate Account Creation

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts ⚠️ userReference is required to be defined in the initiate for WF32 in order for Screening to work.

Request:

curl --request POST --location 'https://account.amer-1.jumio.ai/api/v1/accounts' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 32,
            "credentials": [
                {
                    "category": "ID",
                    "type": {
                        "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                    },
                    "country": {
                        "values": ["USA", "CAN", "AUT", "GBR"]
                    }
                }
            ]
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE",
        "userConsent": {
            "userIp": "192.168.0.1",
            "userLocation": {
                "country": "USA",
                "state": "IL"
            },
             "consent": {
              "obtained": "yes",
              "obtainedAt": "2022-07-20T17:20:35.000Z"

            }
        }
    }'

Response:

{
    "timestamp": "2021-08-20T11:36:34.005Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationToken=xxx&locale=de"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                      "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                      "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-bbbbbbbbbbbb",
                "category": "SELFIE",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "face": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-bbbbbbbbbbbb/parts/FACE"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            },
            {
                "id": "33333333-3333-3333-cccccccccccc",
                "category": "FACEMAP",
                "allowedChannels": [
                    "WEB",
                    "SDK"
                ]
            }
        ]
    }
}

Retrieval

Refer to Data Acquistion section for more information on available channels (API, SDK, WEB). Use our Retrieval API to retrieve account data and/or data acquired during a workflow.
