Mexican INE Data & Face Validation

Jumio has a number of database check services available for Mexico. These checks allow you to validate Mexican National IDs and personal identifiable information.

This service connects with the Mexican National Electoral Institute (Instituto Nacional Electoral, INE) to validate INE ID numbers, owner information and biometric information. There are 2 services that are available for INE:

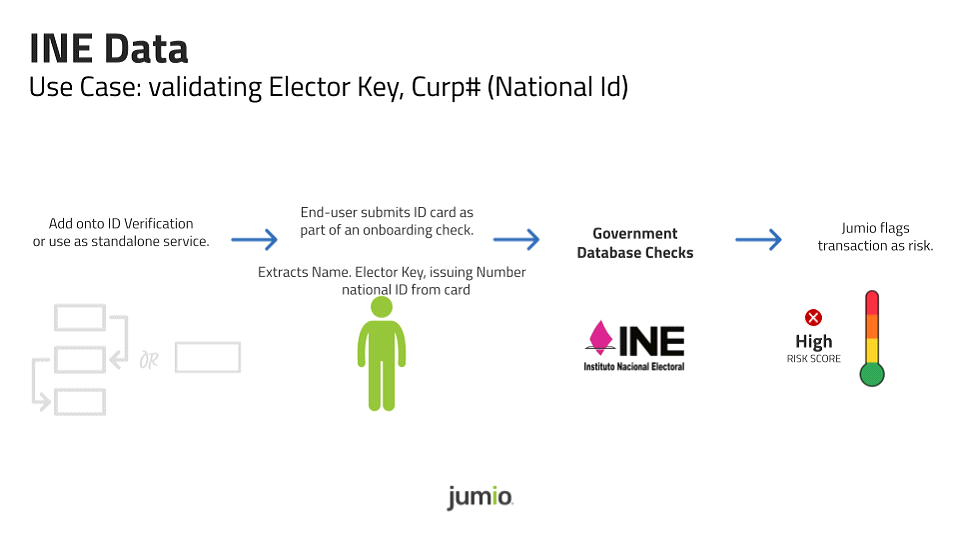

1. Data Validation of Voting credential at INE.

Verifies that the data registered at INE’s nominal database matches those presented by the user.
Validates that the credential is a valid document.

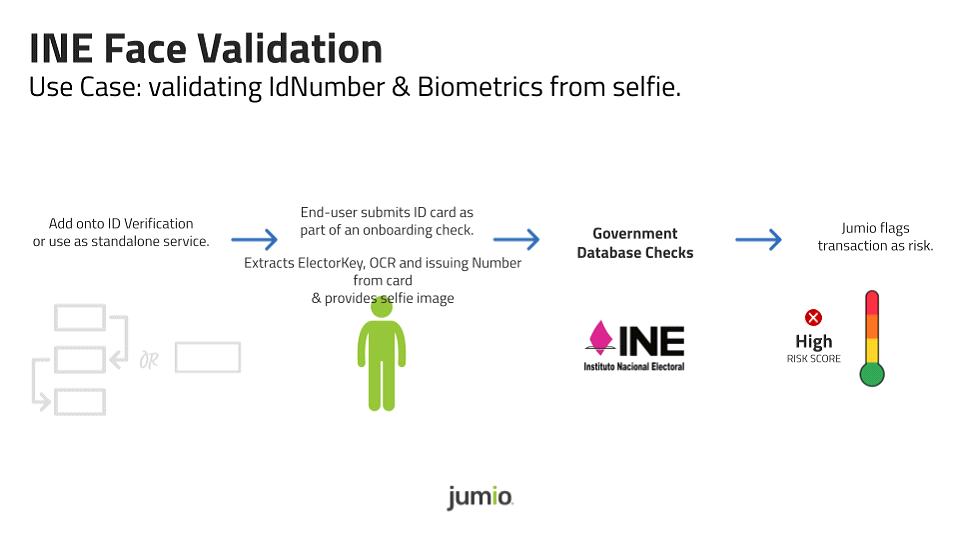

2. Biometric Validation of Voting credential at INE.

Verifies that the face of the user matches that registered in the INE.

info

The data validation and Biometric validation services both require a direct contract with the INE. Please see your Jumio Sales representative for more information. We work with a partner to directly integrate with INE.

Service Name	Description	Required Fields	Verifiable Fields
Mexico INE Data Validation	Input is verified against the INE	Elector Key, OCR, Issue #	Name, Paternal Surname, Maternal Surname, Curp #(National Id), OCR#, Elector Key, Registration Year, Issuing Year, Issuing Number
Mexico INE Face Validation	Input is verified against the INE	Elector Key, OCR, Issue #	Selfie Image, Name, Paternal Surname, Maternal Surname, Face Match, OCR#, Elector Key, Registration Year, Issuing Year, Issuing Number, Curp #(Id number)

Customer Onboarding

Due to the nature of the integration with INE, we will work with our partner to stand up a dedicated secure infrastructure that is required by the Mexican Government to access INE. Once the contract with INE is signed, our production team will work you and our partner (FIMPE) to start the onboarding process.

Our production team needs the following information:

AWS Region and Stage where Middleware needs to be deployed.

Tenant Information:

Tenant GUID
Tenant Id
Tenant Name

FIMPE Middleware Key files(provided by FIMPE):

INSTITUTONACIONALELECTORAL_publica.key
MW_KEYS_TO_SVBI_PRIVATE_MW_KEY
publica.key
privada.key
FIMPE SVBI Port Number(provided by FIMPE)

The estimated time needed for completion:

4-5 days/client to setup the environments
2 days/client for the Engineering team to test and certify the setup and functionality.

Required Credentials

Prepared Data: INE Data

Key	Type	Mandatory	Description
firstName	string	no	First name of the subject. Optimal to include.
paternalSurname	string	no	Paternal surname of the subject.
maternalSurname	string	no	Maternal surname of the subject.
address	Object	no	Only the fields which are mentioned are required
address.country	string	no	country should be set to “MEX”
id	Object	no	See in next row
id.idNumber	string	no	CURP ID number # example "XXXX910225XXXXXS09"
id.Type	string	conditional	ID_CARD
id.subType	string	no	Only required for countries where idType is not sufficient.
id.issuingDate	string	no	Date in YYYY-MM-DD format only.
id.expiryDate	string	no	Date in YYYY-MM-DD format only.
ine	Object	yes	See in next row
ine.cic	string	no	CIC number of the elector credential
ine.ocr	string	yes	OCR number of the elector credential
ine.issuingNumber	string	yes	Issuing Number - Numeric
ine.electorKey	string	yes	Elector Key - 18 Characters
ine.registrationYear	string	no	YYYY
ine.issuingYear	string	no	YYYY

Capability Request

{
    "firstName": "XXXXX",
    "paternalSurname": "XXXXXX",
    "maternalSurname": "XXXXX",
    "address": {
        "country": "MEX"
    },
    "id": {
        "idNumber": "XYZA891218ABCEFG01",
        "type": "ID_CARD",
        "subType": "",
        "issuingDate": "",
        "expiryDate": ""
    },
    "ine": {
        "cic": "201112341",
        "ocr": "0000345678911", <mandatory>
        "issuingNumber": "02", <mandatory>
        "electorKey": "ABCDEF12341809C100",<mandatory>
        "registrationYear": 2008,
        "issuingYear": 2019
    }
}

Response Values

Details

Parameter	Type	Note
id	string	UUID of the capability
credentials	array(Credential)
decision	object
decision.type	string	Possible values: `NOT_EXECUTED`, `PASSED`, `REJECTED`, `WARNING`
		If curp # is a mismatch, `decision = REJECT`, risk score 100, else:
		If elector key, ocr, and name are a match, `decision = PASS`, risk score 0, else `decision = WARNING`, risk score 50
decision.details	object
decision.details.label	string	Possible values: `OK`, `DENY`, `ALERT`, `NOT_ENOUGH_DATA`, `TECHNICAL_ERROR`, `PERMISSION_DENIED`, `BAD_REQUEST`, `PRECONDITION_NOT_FULFILLED`
data	object
data.completeNameMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.nationalIdMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.ocrMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.issuingNumberMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.registrationYearMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.issuingYearMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.electorKeyMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.paternalSurnameMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.maternalSurnameMatch	string	Possible values: `MATCH`, `NOT_MATCH`

Credential

Key	Type	Description
id	string	UUID of credential used
category	string	Category of credential used

Capability Response

"govtIdVerification": [
            {
                "id": "d1858198-d2f2-4235-97f7-5f9cb088a2ae",
                "credentials": [
                    {
                        "id": "21135260-f435-4052-93a7-a943f12d5f2c",
                        "category": "ID"
                    }
                ],
                "decision": {
                    "type": "WARNING",
                    "details": {
                        "label": "ALERT"
                    }
                },
                "data": {
                    "completeNameMatch": "NOT_MATCH",
                    "nationalIdMatch": "MATCH",
                    "ocrMatch": "MATCH",
                    "issuingNumberMatch": "NOT_MATCH",
                    "registrationYearMatch": "NOT_MATCH",
                    "issuingYearMatch": "MATCH",
                    "electorKeyMatch": "MATCH",
                    "paternalSurnameMatch": "MATCH",
                    "maternalSurnameMatch": "MATCH"
                }
            }
        ]

Required Credentials for Prepared Data: INE Data with Biometric (Selfie)

Required Credentials

Key	Type	Mandatory	Description
firstName	string	no
paternalSurname	string	no
maternalSurname	string	no
address	Object	no	Only the fields which are mentioned are required
address.country	string	no	country should be set to “MEX”
id	Object	no	See in next row
id.idNumber	string	no	CURP ID number # example "XXXX910225XXXXXS09"
id.Type	string	conditional	ID_CARD
id.subType	string	no
id.issuingDate	string	no
id.expiryDate	string	no
ine	Object	yes	See in next row
ine.cic	string	no	CIC number of the elector credential
ine.ocr	string	yes	OCR number of the elector credential
ine.issuingNumber	string	yes	Issuing Number - Numeric
ine.electorKey	string	yes	Elector Key - 18 Characters
ine.registrationYear	string	no	YYYY
ine.issuingYear	string	no	YYYY

note

Biometric (Selfie) needs to be sent with Prepared Data.

Capability Request

{
    "firstName": "XXXXX",
    "paternalSurname": "XXXXXX",
    "maternalSurname": "XXXXX",
    "address": {
        "country": "MEX"
    },
    "id": {
        "idNumber": "XYZA891218ABCEFG01",
        "type": "ID_CARD",
        "subType": "",
        "issuingDate": "",
        "expiryDate": ""
    },
    "ine": {
        "cic": "201112341",
        "ocr": "0000345678911", <mandatory>
        "issuingNumber": "02", <mandatory>
        "electorKey": "ABCDEF12341809C100",<mandatory>
        "registrationYear": 2008,
        "issuingYear": 2019
    }
}

Response Values

Details

Parameter	Type	Note
id	string	UUID of the capability
credentials	array(Credential)
decision	object
decision.type	string	Possible values: `NOT_EXECUTED`, `PASSED`, `REJECTED`, `WARNING`
		If `curp` is a mismatch and face similarity is <=50%, `decision = REJECT`, risk score is 100, else:
		If the elector key, ocr, and name match with similarity >=85%, `decision = PASS`, risk score = 0, else `decision = WARNING`. Risk score = 50
decision.details	object
decision.details.label	string	Possible values: `OK`, `DENY`, `ALERT`, `NOT_ENOUGH_DATA`, `TECHNICAL_ERROR`, `PERMISSION_DENIED`, `BAD_REQUEST`, `PRECONDITION_NOT_FULFILLED`
data	object
data.NameMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.faceMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.ocrMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.issuingNumberMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.registrationYearMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.issuingYearMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.electorKeyMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.paternalSurnameMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.maternalSurnameMatch	string	Possible values: `MATCH`, `NOT_MATCH`
data.idNumberMatch	string	Possible values: `MATCH`, `NOT_MATCH`

Credential

Key	Type	Description
id	string	UUID of credential used
category	string	Category of credential used

Capability Response

"biometricVerification": [
  {
    "id": "c0015f7b-0999-4682-a1a6-a10241a01f7c",
    "credentials": [
      {
        "id": "36b715ee-2822-488d-ac2a-159536645411",
        "category": "DATA"
      },
      {
        "id": "adce826e-a43d-45d4-84f7-80e2b917fda1",
        "category": "SELFIE"
      }
    ],
    "decision": {
      "type": "REJECTED",
      "details": {
        "label": "HIGH_RISK"
      }
    },
    "data": {
      "nameMatch": "NOT_MATCH",
      "faceMatch": "NOT_MATCH",
      "ocrMatch": "MATCH",
      "issuingNumberMatch": "NOT_MATCH",
      "registrationYearMatch": "NOT_MATCH",
      "issuingYearMatch": "MATCH",
      "electorKeyMatch": "MATCH",
      "paternalSurnameMatch": "MATCH",
      "maternalSurnameMatch": "MATCH",
      "idNumberMatch": "MATCH"
    }
  }
]
